Tilted Element™ Thru-Hull
Minimize Your Drag

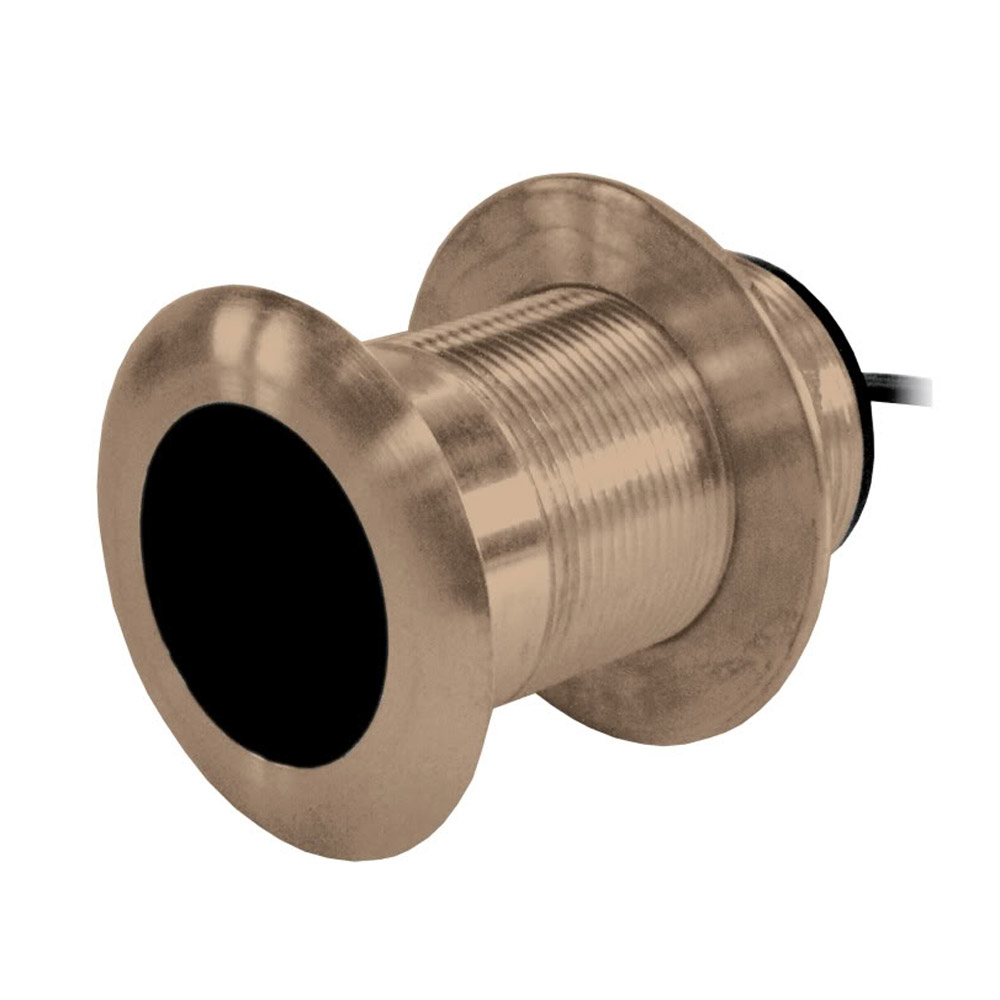

The B619 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The bronze B619 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.
Applications
- Cruising powerboats and sailboats
- Sailboats
Features
- Depth only or Depth and temperature
- Fixed 12° tilted versions for 8° to 15° hull deadrise
- Right angle cable exit offers low headroom and protection when transducer is stepped on
- Included rubber washer allows tightening of the hull nut to irregular hull surfaces
- Housings are ABYC H-27 compliant
- Optional temperature sensor
- Bronze housing
- Boat Size: Up to 9M (30')
