Understanding your boat’s electrical setup isn’t just a technical skill—it’s a core part of safe, confident boating. Modern vessels rely on a complex network of wiring, batteries, charging systems, and onboard electronics. Whether you’re a weekend cruiser or a seasoned mariner, knowing the fundamentals of marine electrical systems helps you prevent failures, diagnose issues quickly, and keep your boat running reliably on the water.
1. Overview of Marine Electrical Systems
A typical marine electrical system includes two primary components:
DC System (12V or 24V)
- Powers navigation lights, pumps, radios, instruments, and most onboard accessories
- Runs off one or more deep‑cycle batteries
- Charged by alternators, solar panels, or shore power chargers
AC System (110V/220V)
- Used for high‑demand appliances like air conditioning, microwaves, and battery chargers
- Powered by shore power or onboard generators
Understanding how these systems interact is the foundation of safe operation and effective boat electrical troubleshooting.
2. Marine Wiring Basics Every Boater Should Know
Marine wiring is not the same as household wiring. Boats operate in a harsh, corrosive environment, and electrical components must be built to withstand vibration, moisture, and salt exposure.
Key Marine Wiring Basics
- Use tinned copper wire
Resists corrosion far better than bare copper.
- Follow ABYC color standards
Helps ensure consistency and safety during repairs.
- Choose the correct wire gauge
Undersized wire can overheat and cause failures.
- Protect circuits with fuses or breakers
Every positive conductor must have overcurrent protection.
- Secure wiring properly
Prevents chafing, vibration damage, and accidental shorts.

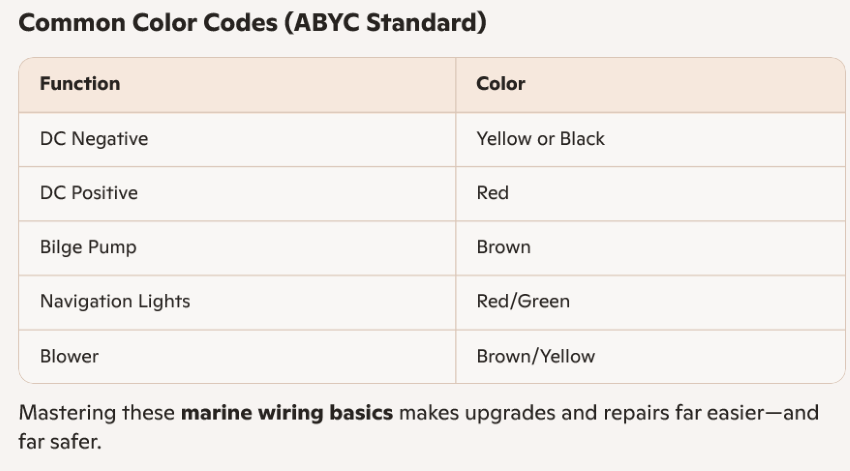

.png?opt=5 "Common Color Codes (ABYC Standard)")
Mastering these marine wiring basics makes upgrades and repairs far easier—and far safer.
3. Batteries and Charging Systems
Your batteries are the heart of your DC system. Understanding their type and condition is essential.
Battery Types
- Flooded Lead‑Acid – Affordable, requires maintenance
- AGM – Sealed, vibration‑resistant, low maintenance
- Lithium (LiFePO4) – Lightweight, long‑lasting, requires compatible charging equipment
Charging Sources
- Alternator
- Shore power charger
- Solar panels
- Wind generators
A healthy charging system prevents dead batteries, voltage drops, and equipment failures.
4. Boat Electrical Troubleshooting: How to Diagnose Common Issues
Even well‑maintained boats experience electrical problems. Knowing how to troubleshoot them saves time, money, and frustration.
Step‑by‑Step Troubleshooting Process
- Start with the battery
- Check voltage
- Inspect terminals for corrosion
- Ensure connections are tight
- Verify power at the panel
- Confirm breakers or fuses are not tripped
- Replace blown fuses with the correct rating
- Trace the circuit
- Look for loose connections
- Inspect wiring for chafing or corrosion
- Test continuity with a multimeter
- Check the load
- Lights, pumps, and electronics can fail internally
- Swap with a known‑good component if possible
- Evaluate grounding
- Poor grounds are one of the most common causes of electrical failures
Common Problems
- Dim or flickering lights
- Electronics resetting or shutting off
- Bilge pump not activating
- Battery not charging
- Corrosion on terminals or connectors
A systematic approach to boat electrical troubleshooting helps isolate the issue quickly and safely.
5. Preventative Maintenance for Marine Electrical Systems
Routine inspection is the best way to avoid electrical failures on the water.
Maintenance Checklist
- Inspect battery terminals monthly
- Clean and protect connections with dielectric grease
- Check wire runs for chafing or loose clamps
- Test bilge pumps and navigation lights regularly
- Verify shore power cords and plugs are in good condition
- Replace corroded or outdated components promptly
Preventative care extends the life of your marine electrical systems and reduces the risk of unexpected breakdowns.
Conclusion
A solid understanding of marine wiring basics, system components, and boat electrical troubleshooting empowers every boat owner to operate safely and confidently. Whether you’re upgrading equipment, diagnosing a fault, or performing routine maintenance, electrical knowledge is one of the most valuable skills you can bring aboard.
