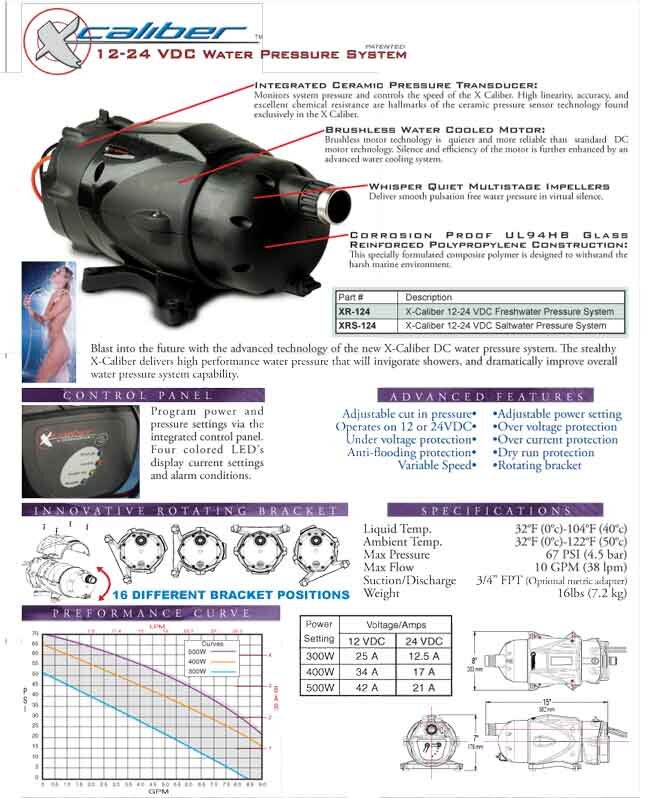

Headhunter XRS 124 X Cal 12/24V High Performance Marine Pressure Pump
The Headhunter XRS 124 X Cal 12/24V Pump is engineered for boat owners who want powerful, quiet, and dependable water pressure on board. Built with a multi stage self priming impeller system and a water cooled DC motor, it delivers smooth, household like water pressure without the noise or vibration common in traditional pumps.
Its integrated microprocessor constantly monitors temperature, pressure, and electrical load, automatically adjusting speed to match demand while protecting the pump from dry running, over voltage, under voltage, and over current conditions. Whether installed in a yacht, sportfisher, or liveaboard vessel, the XRS 124 provides consistent 10 GPM flow and up to 67 PSI of pressure-ideal for showers, washdown stations, and full freshwater or saltwater systems.
The rotating bracket makes installation flexible, and the rugged polypropylene housing ensures long term corrosion resistance in harsh marine environments. This is a premium, set and forget pressure system designed for reliability, efficiency, and comfort at sea.
Key Features
- 10 GPM maximum flow for strong, consistent water delivery.
- 67 PSI maximum pressure for household quality water pressure onboard.
- Operates on 12V or 24V DC, ideal for a wide range of marine electrical systems.
- Variable speed control adjusts output to demand, reducing noise and energy use.
- Dry run, over voltage, under voltage, and over current protection built in.
- Multi stage self priming impeller system for smooth, pulsation free flow.
- Water cooled, brushless DC motor for quiet, long life operation.
- Rotating mounting bracket with 16 positions for easy installation.
- Rugged, corrosion proof polypropylene housing for marine durability.
- 3/4" FPT inlet/outlet ports with optional metric adapters.
Applications
- Freshwater pressure systems on yachts, cruisers, and liveaboards
- Saltwater washdown systems for fishing and commercial vessels
- High demand multi fixture water systems
- Pressure boosting for onboard plumbing
- Replacement for older, noisy, or low flow marine pumps
FAQ
1. Can the XRS 124 run continuously for long periods?
Yes. Its water cooled motor and variable speed control allow extended operation while maintaining safe temperatures and electrical protection.
2. Is the XRS 124 suitable for both freshwater and saltwater systems?
Yes. The XRS 124 model is specifically designed for either freshwater or saltwater applications, unlike the XR 124 which is freshwater only.
3. Does the pump require an accumulator tank?
Accumulator tanks are optional. The pumps variable speed technology reduces cycling, but an accumulator can further smooth pressure in complex plumbing systems.
