Garmin GNX™ 130 Marine Instrument - 10"



Specs   Warranty Info   Literature   Rebate   Video
Shipping Dimensions
13" x 11" x 3" (3.4 lbs)
Manufacturer
GARMIN
Manufacturer Part Number
010-01396-00
UPC
753759127060
Country of Origin
TAIWAN
Drop Ship
No
Special Order
No
Exportable
Yes
HTS Code
8531.20.00.20
Truck Freight
No
Quantity In Stock
0
Your Price
$1,782.49
Qty

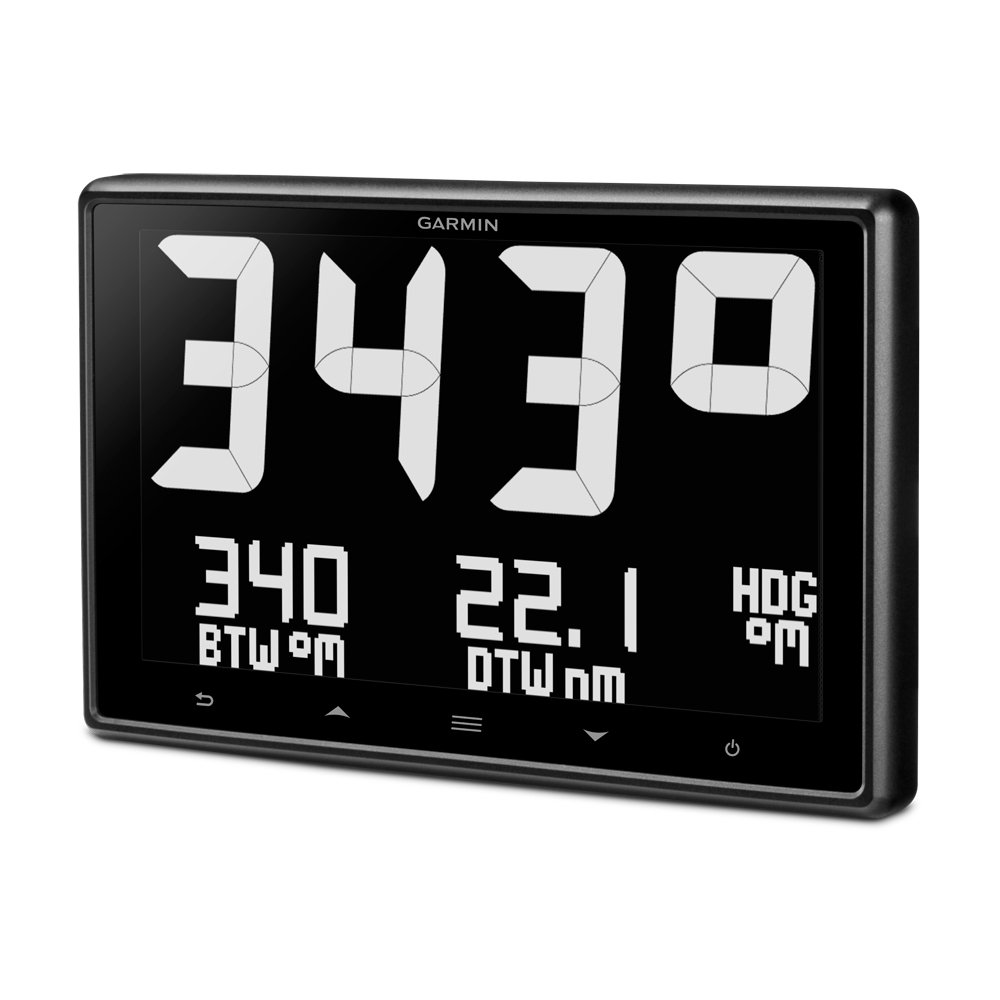

GNX™ 130 Marine Instrument Display - 10"

Garmin's GNX™ 130 is a premium sailing instrument display designed for serious sailors who demand quality, precision and total integration. The GNX™ 130 is a high-precision glass-bonded 10" large format instrument which offers superior readability day and night. Low power consuming, high-contrast, high-visibility LCD display with largest in class white or color digits. Fully customizable profiles and five display configurations: single, dual and triple function, plus Gauge and Graph modes, to display over 50 important marine parameters for wind, sea and vessel conditions. The optional GNX keypad offers additional control for the GNX™ 130 from a distance with a push-button keypad interface that can be mounted near the helm.

Features:
  • Large easy-to-read digits - Bold, easy-to-read digits are the
    largest digits in class providing the data necessary to make confident
    decisions
  • Reflective Ultra-Glow Technology - Display reflects the sunlight
    resulting in vibrant, glowing digits
  • GNX Keypad - Optional GNX Keypad offers additional control of the GNX
    130 from a distance with a push-button keypad interface that can be mounted
    near the helm
  • Easy Expandability/Scalability - Mount multiple displays above the
    companionway or at the base of the mast using optional mast brackets
  • 2, 3 and 4 Unit Mast Brackets - Flat mount GNX 120 displays for a
    beautiful glass mast look using optional carbon fiber mast brackets
  • Functionality - Easy to set up, calibrate and use thanks to the on-unit
    capacitive touch buttons or fixed-mount GNX Keypad (sold separately)
  • Glass-Bonded Display - High-precision back lit glass-bonded LCD display
    avoids fogging
  • NMEA 2000® - Displays over 50 marine and boat parameters for wind,
    sea, and vessel conditions from the NMEA 2000 bus
  • Integrated Sailing Eco-Eystem - Allows seamless sharing of sailing data
    between Garmin devices
  • 3rd Pary Software Compatability - 10 Channels to display information
    from tactical Navigation SW like Expedition, Adrena and SeaTrack
  • Visibility - Large, easy-to-read white or color digits on black
    background for high contrast and high visibility in all lighting
    conditions
  • Multiple Backlight Colors - Tailor display for optimum viewing choosing
    from 7 different backlight colors, or create a custom color
  • Auto-Scroll - Enable auto-scroll to automatically cycle between screens
    for hands-free operation
  • Low Power Consumption - Spend more time on the water - consumes only
    0.36 W (day - no backlight) and 0.4 W (night - mid-level backlight),
    which allows for peaceful, long-range sailing without running the motor or
    generator
  • Fully Customizable User-Profiles - Fully customizable user-profiles
    allow you to configure screen layout to your preferred setting
  • Display Configurations - Five display configurations: single, dual and
    triple function, plus Gauge and Graph modes


Includes: GNX 130, trim piece snap cover, protective cover, flush mount gasket and hardware, NMEA 2000 drop cable, NMEA 2000 T-connector, documentation
