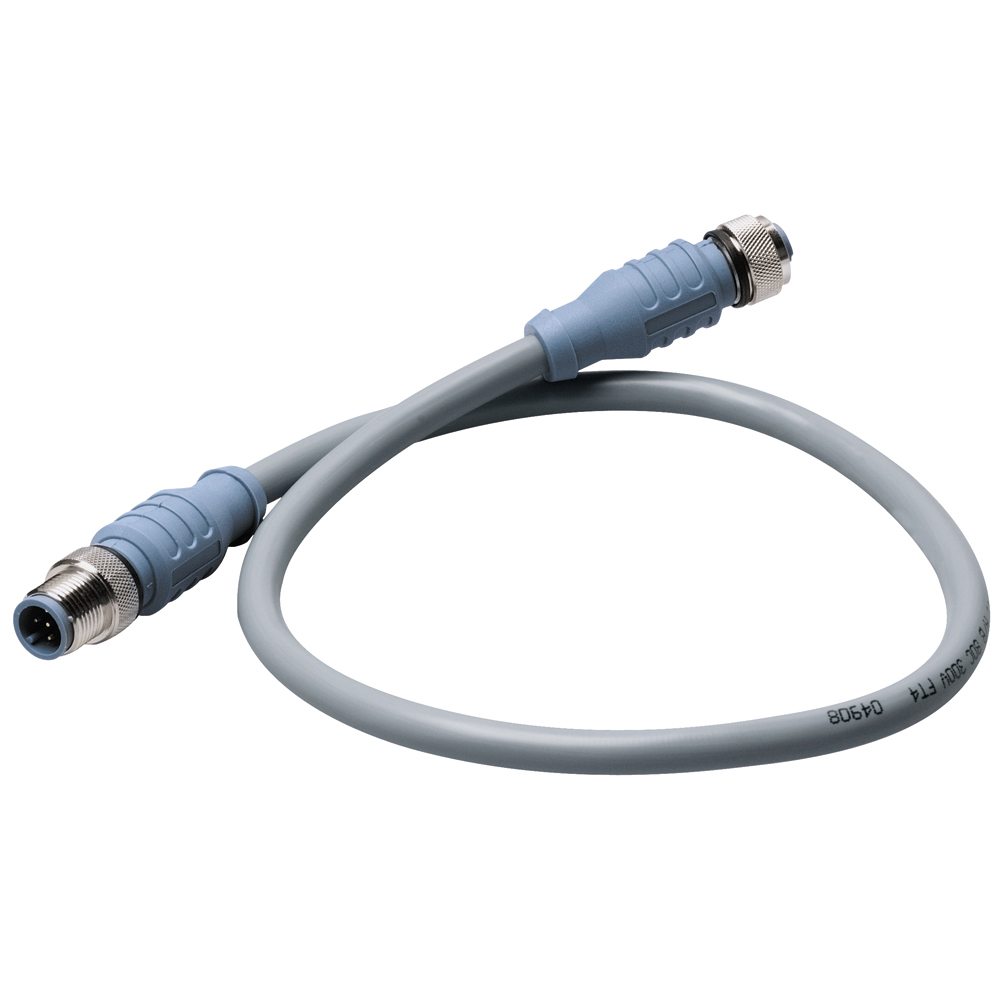

Maretron Micro Double-Ended Cordset - 3M

Specs   Warranty Info   Literature   Rebate   Video
Shipping Dimensions
8" x 6" x 1" (0.55 lbs)
Manufacturer
MARETRON
Manufacturer Part Number
CM-CG1-CF-03.0
UPC
873804001531
HTS Code
8544.42.00.00
Special Order
No
Country of Origin
MEXICO
Exportable
Yes
Drop Ship
No
Rating
Nobody has rated this Product yet. Review This Product
Quantity in Stock
11
Your Price
$31.87
Qty


Micro Double-Ended Cordset - 3M

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"

Electrical

  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental

  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
    AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
    AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved
