Iwaki Magnetic Drive Pumps: Seal-Less MD & WMD Centrifugal Pumps for Marine, Aquarium & Industrial Use

If you've ever dealt with a leaking shaft seal or a pump that hums louder every month, you already understand why magnetic drive pumps have become the go-to choice for boat owners, aquarists, and industrial operators alike. Iwaki's MD and WMD Series pumps eliminate the mechanical seal entirely — the impeller is driven by magnetic coupling rather than a direct shaft connection, which means there's nothing to wear out, nothing to leak, and far less noise and heat generated during operation. Built from GFRPP (glass-filled polypropylene), these pumps stand up to saltwater, mild chemicals, and continuous duty cycles in ways that metal or shaft-seal pumps simply can't match.

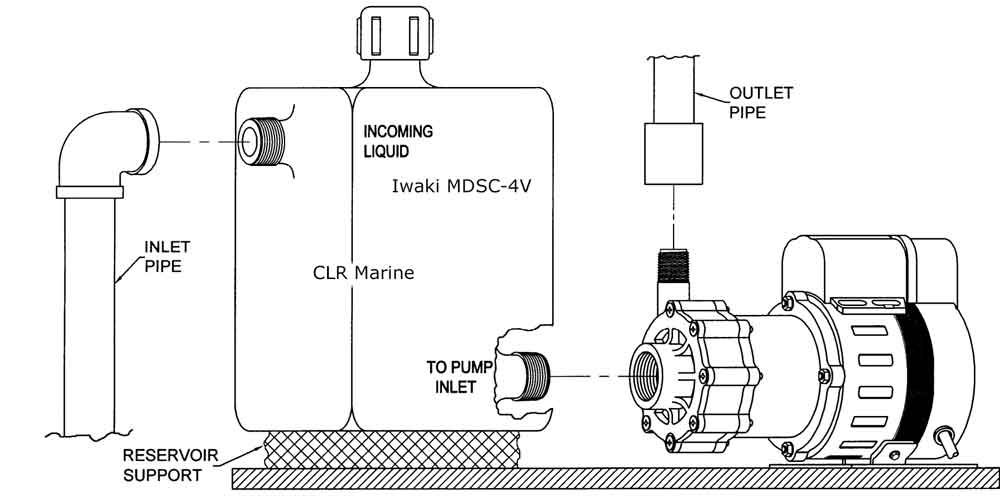

Whether you're circulating water through a livewell, running a saltwater reef tank, or moving fluid through an industrial process line, the Iwaki magnetic drive lineup covers a wide range of flow rates, voltages, and horsepower ratings — from compact 1/250 HP units for small aquariums to higher-capacity 1/4 HP models moving over 25 GPM. Each pump is close-coupled to its own AC motor, so installation is straightforward: connect the hose barb or NPT ports, wire the motor, and you're running. The internal cooling circuit and dual-bearing design also mean these pumps run cooler and last longer than typical mag drive alternatives, even under continuous or near-continuous use.

This makes the Iwaki MD/WMD Series a practical choice for anyone who needs dependable, low-maintenance fluid movement without the ongoing seal replacement costs and drip concerns of traditional pumps. Whether you're outfitting a boat's live bait or wash-down system, maintaining a marine aquarium, or specifying a pump for a chemical recirculation loop, this category brings together the full range of genuine Iwaki magnetic drive pumps in one place.

What the Letters Stand for in the Part Number

• WMD pumps have American Made Motors
• MD pumps have Japanese Made Motors
• RLT pumps are for pressure applications
• RZT pumps are for very high pressure applications
• RLXT pumps are for circulation and wet or dry return

Why Choose Iwaki Magnetic Drive Pumps

• Seal-less design — no mechanical shaft seal means no wear-related leaks, ever
• GFRPP polypropylene construction — resists corrosion from saltwater, chemicals, and marine environments
• Quiet, cool operation — internal cooling circuit and dual-bearing system reduce noise and extend bearing life
• Wide voltage and horsepower range — models available from 100V to 230V, 1/250 HP to 1/4 HP
• Multiple port configurations — hose barb and NPT thread options from 1/2" to 1"
• High efficiency — fluoropolymer bearings minimize mechanical losses compared to conventional mag drive pumps
• Low maintenance — fewer moving parts in contact with fluid means longer service intervals

Common Applications

• Saltwater and freshwater aquarium recirculation and filtration systems
• Boat livewell, baitwell, and wash-down water circulation
• Chemical transfer and dosing in industrial or process environments
• Cooling and recirculation loops for equipment requiring continuous duty
• Water feature and fountain pumping
• Reef tank protein skimmer and sump return systems
• General-purpose fluid transfer where corrosion resistance is critical

FAQ Section

Are Iwaki magnetic drive pumps safe for saltwater use?
Yes. The GFRPP polypropylene housing and seal-less magnetic coupling are specifically designed to resist corrosion from saltwater and other harsh fluids, making these pumps a common choice for marine and aquarium applications.

What's the difference between the MD and WMD Series?
Both use the same magnetic drive technology, but the WMD Series is generally built for higher flow applications with larger port sizes, while the MD Series covers a broader range of smaller, compact pumps suited to tighter installations like livewells and aquariums.

Do these pumps require priming?
Like most centrifugal pumps, Iwaki MD and WMD pumps need to be primed (fluid present in the pump housing) before startup — they are not designed to run dry, and running dry can damage the internal bearings over time.

Can an Iwaki mag drive pump run continuously?
Yes, that's actually one of their core advantages. The internal cooling circuit and dual-bearing lubrication system are engineered specifically to support long, continuous duty cycles without overheating.

How do I know which model fits my existing setup?
Match the port size (hose barb or NPT) and voltage of your current pump, then check the flow rate (GPM) and horsepower needed for your application — smaller tanks or livewells typically need less than 10 GPM, while larger recirculation systems may need 20+ GPM.

Are replacement parts available for these pumps?
Individual pump-end and motor assemblies are typically sold as matched units, since the magnetic coupling between the motor and impeller housing is precision-fitted at the factory.
